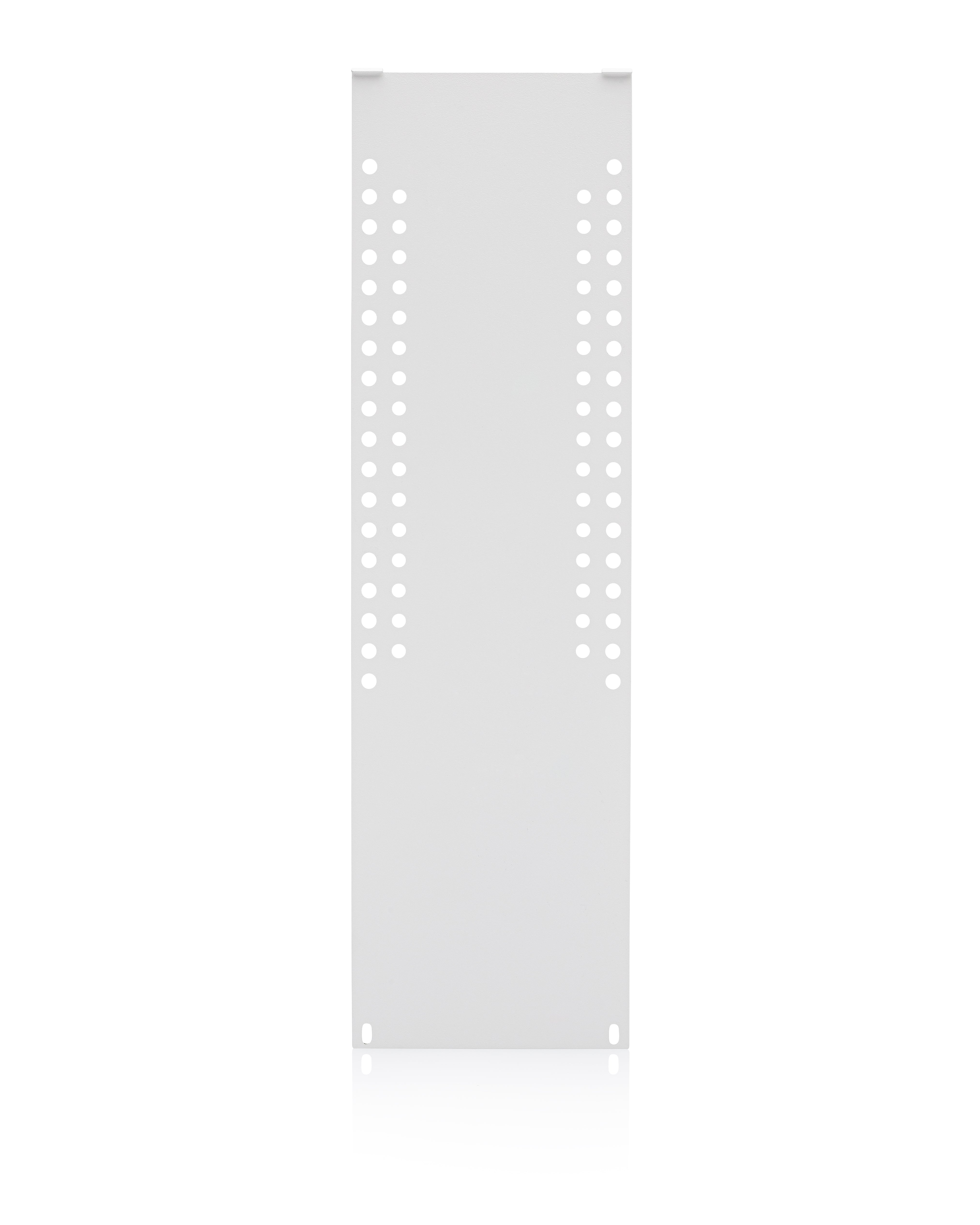

CarePod™ Fixed Monitor Mount
Choose options
Simplify the installation of a computer monitor in any compatible CarePod Wall-Mounted Workstation using our fixed monitor wall mount. Designed to attach to the preinstalled top and bottom horizontal interior tracks, this fixed VESA monitor mount secures any compatible monitor at the desired height, creating a more comfortable workspace for caregivers.
- Compatible with 75mm and 100mm VESA standard patterns
- Supports monitors up to 27 inches and up to 8 pounds
- Easy installation—just mount your monitor, hang, and fasten into place

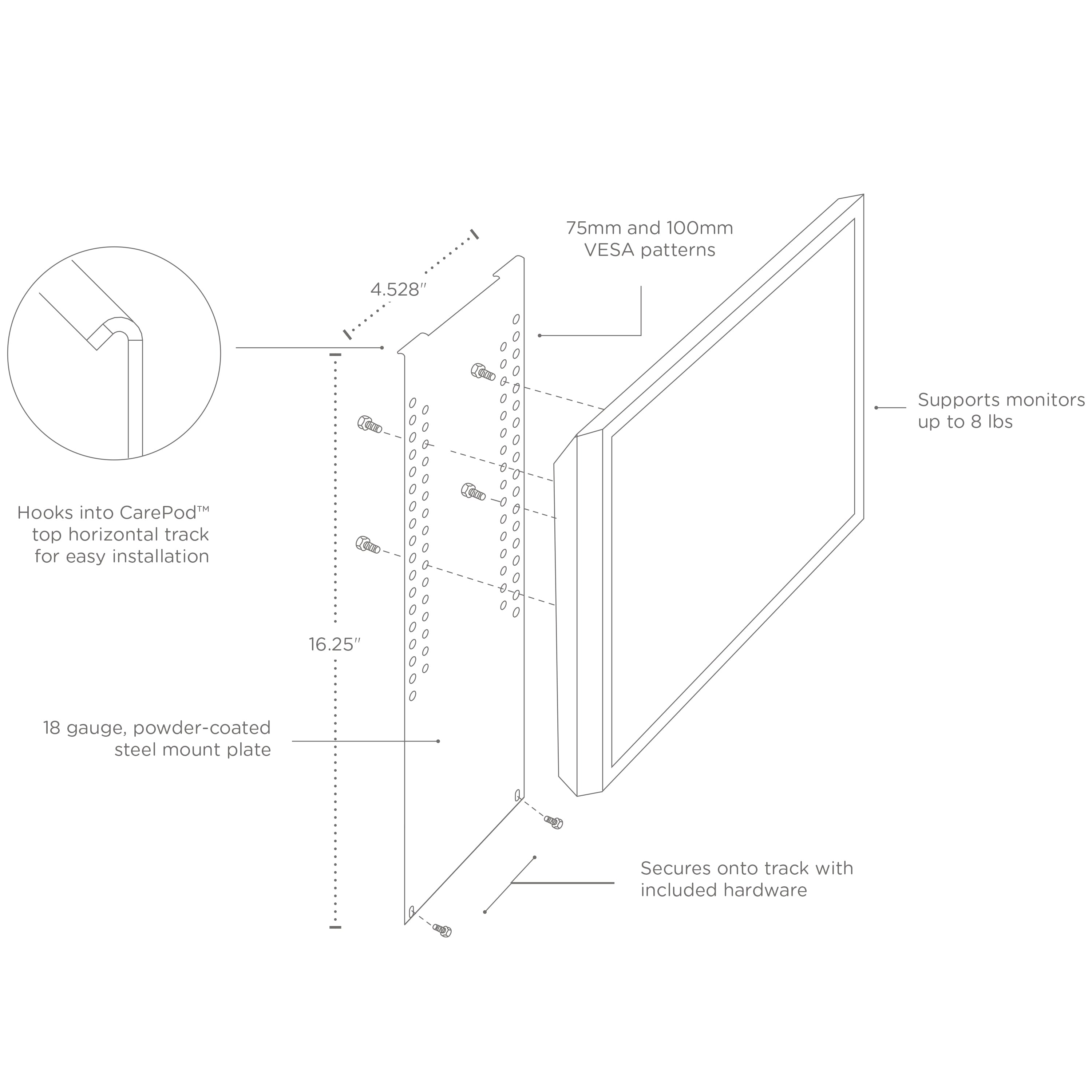

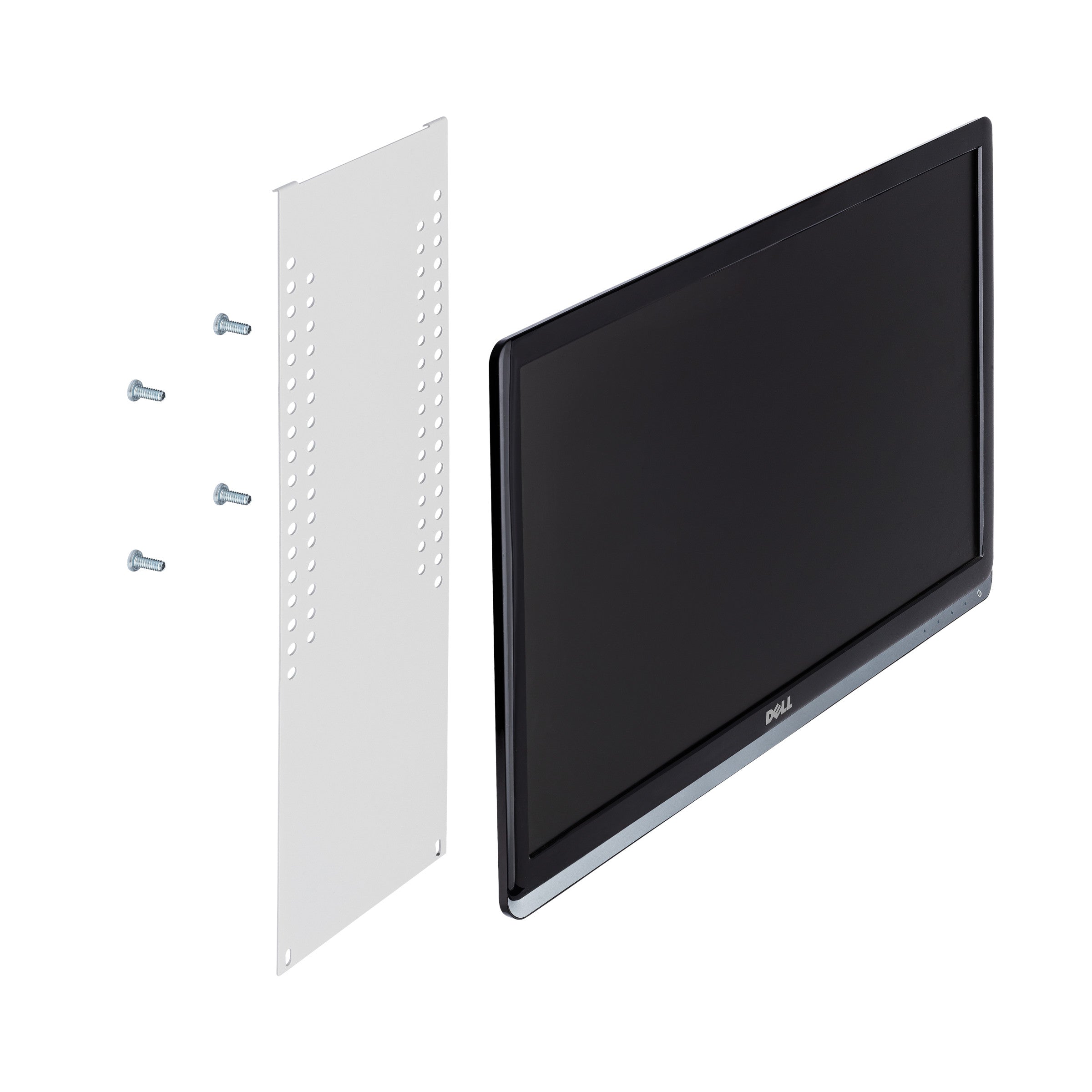

Supporting today’s EHR workflows, our fixed monitor mount accommodates a range of monitor sizes. Simply attach the back of the monitor (using its rear 75mm or 100mm VESA pattern) to the fixed monitor wall mount plate, hooking it onto the interior top horizontal track of the CarePod. Then firmly secure the fixed VESA monitor mount into the interior horizontal bottom track using the provided hardware.
| Package Includes | One (1) mount plate, two (2) square nuts, and two (2) bolts to secure to CarePod. Note: Use hardware provided by monitor manufacturer for mounting to plate. |
|---|---|
| Product Dimensions | L16.25" ×W4.528" ×D.05" |
| Weight | 0.09 lbs |
| Weight Capacity | 12 lbs |
| Monitor Size |
CarePod Narrow | 15 inches max CarePod Wide | 27 inches max CarePod Wide w/Mini Shelves | 24" max |
| Monitor Depth | 2.5 inches max* |
| Mounting Pattern | VESA 75 and 100 mm |
| Finish | Powder White |
| Material | 18 gauge, powder-coated steel |
| Warranty | 1-year limited |
| Hardware | One (1) mount plate, two (2) square nuts, two (2) bolts (NOTE: Monitor mounting hardware not included) |
| *When used in combination with a keyboard door, the keyboard and any mounting Velcro cannot exceed 1.35” high in a 4” deep workstation. | |
| Product Sheet | Download PDF |
|---|---|
| Dimensional Illustrations | Download PDF |
| Installation Instructions | Download PDF |
