CarePod™ Full-Motion Monitor Mount

$30.00 USD

In StockIn StockOut of stock
Shipping calculated at checkout.

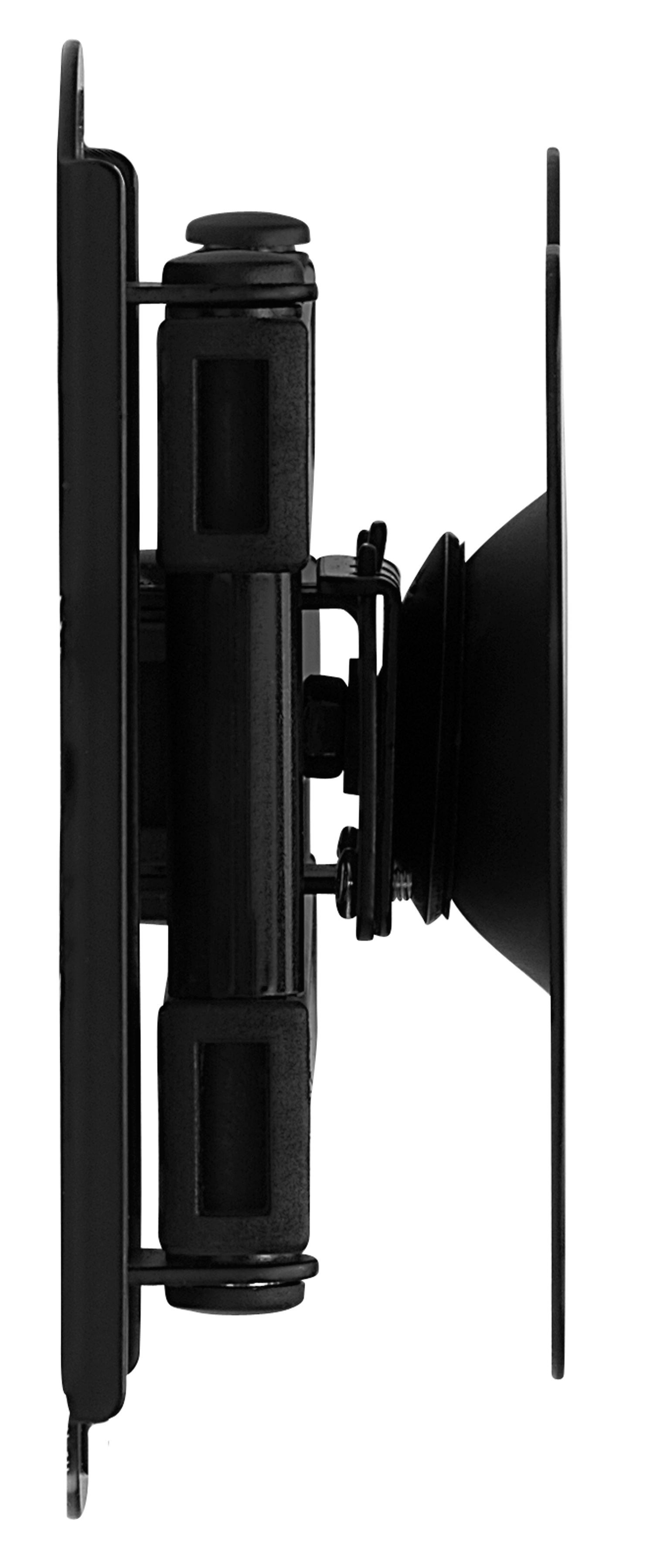

Install a computer monitor inside any compatible CarePod™ Wall-Mounted Workstation with our full-motion monitor mount. Featuring a single-stud wall plate, this sturdy, steel-crafted mount is secured using the wide horizontal slots at the rear of the CarePod. Attach a monitor and then swivel, tilt, and extend for an ideal viewing angle. This full-motion monitor mount creates a more optimal, ergonomic... Read more

SKU: 84999-0020N/A

QUANTITY:

Out of stock
Order in the next to get it between and hoursminutes

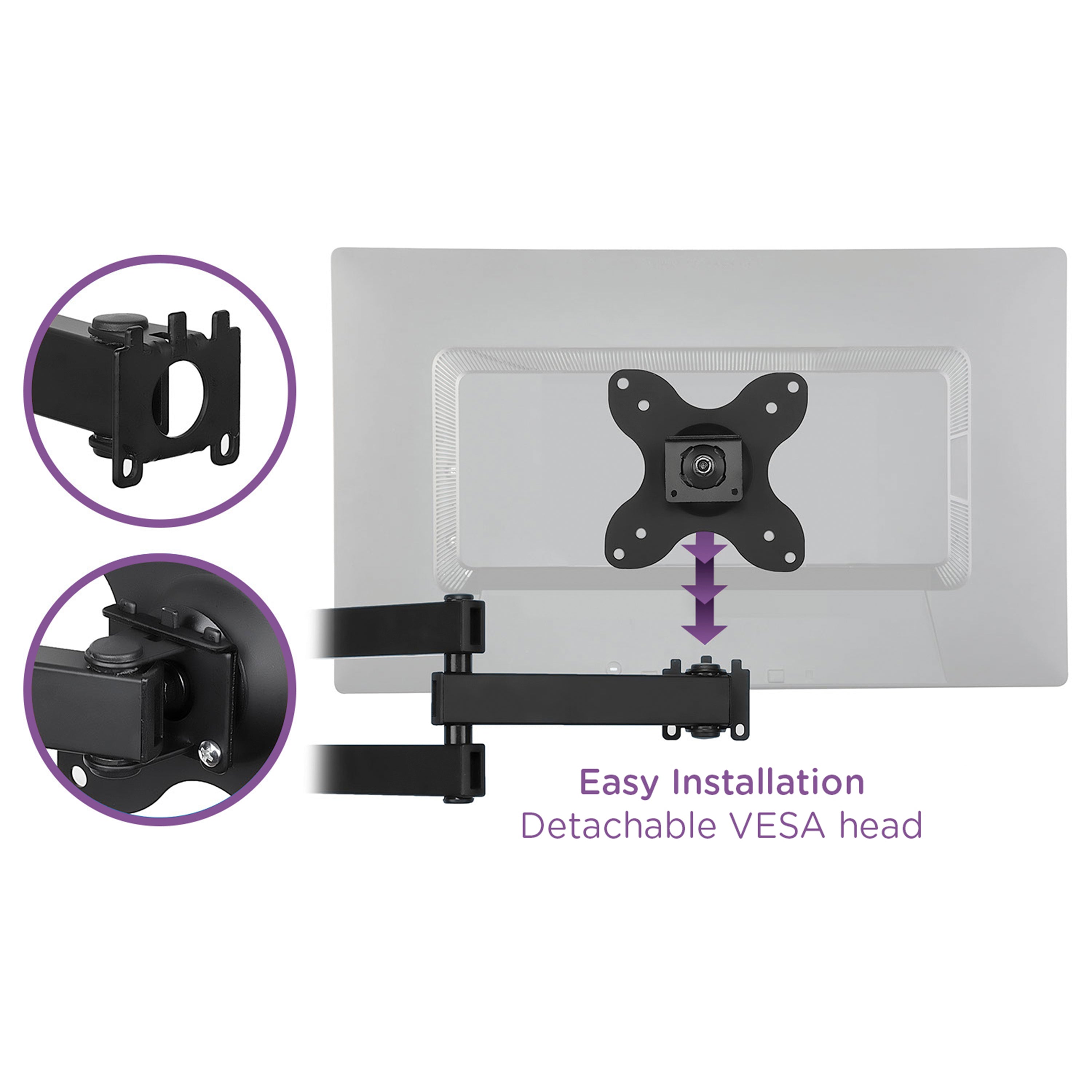

Install a computer monitor inside any compatible CarePod™ Wall-Mounted Workstation with our full-motion monitor mount. Featuring a single-stud wall plate, this sturdy, steel-crafted mount is secured using the wide horizontal slots at the rear of the CarePod. Attach a monitor and then swivel, tilt, and extend for an ideal viewing angle. This full-motion monitor mount creates a more optimal, ergonomic workspace for caregivers, especially when shared by people of varying heights.

  • Compatible with 75mm and 100mm VESA standard patterns
  • Supports monitors up to 34 inches and up to 33 pounds

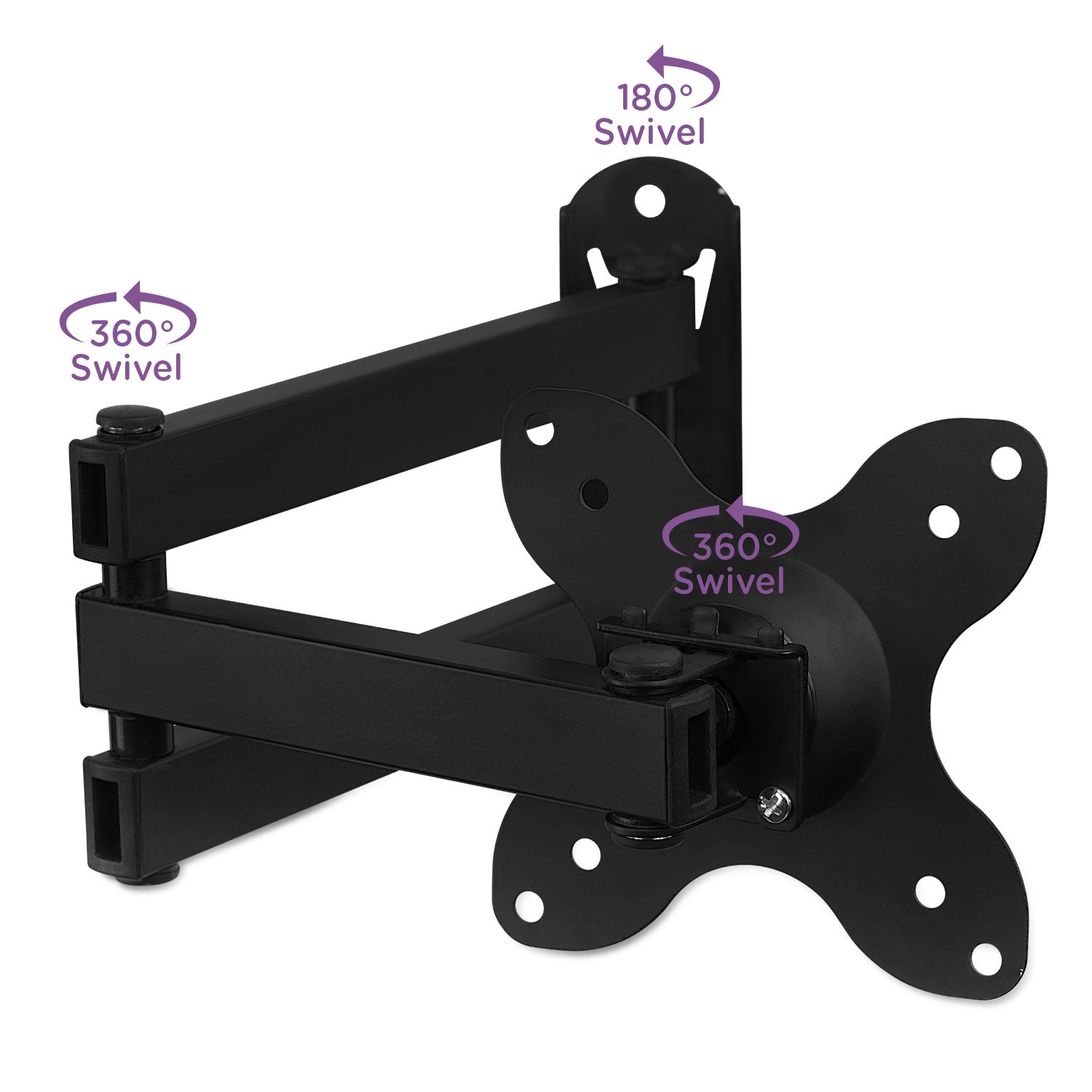

  • Swivels at three points with 180-degree rotation
  • Tilts 15 degrees up and 15 degrees down

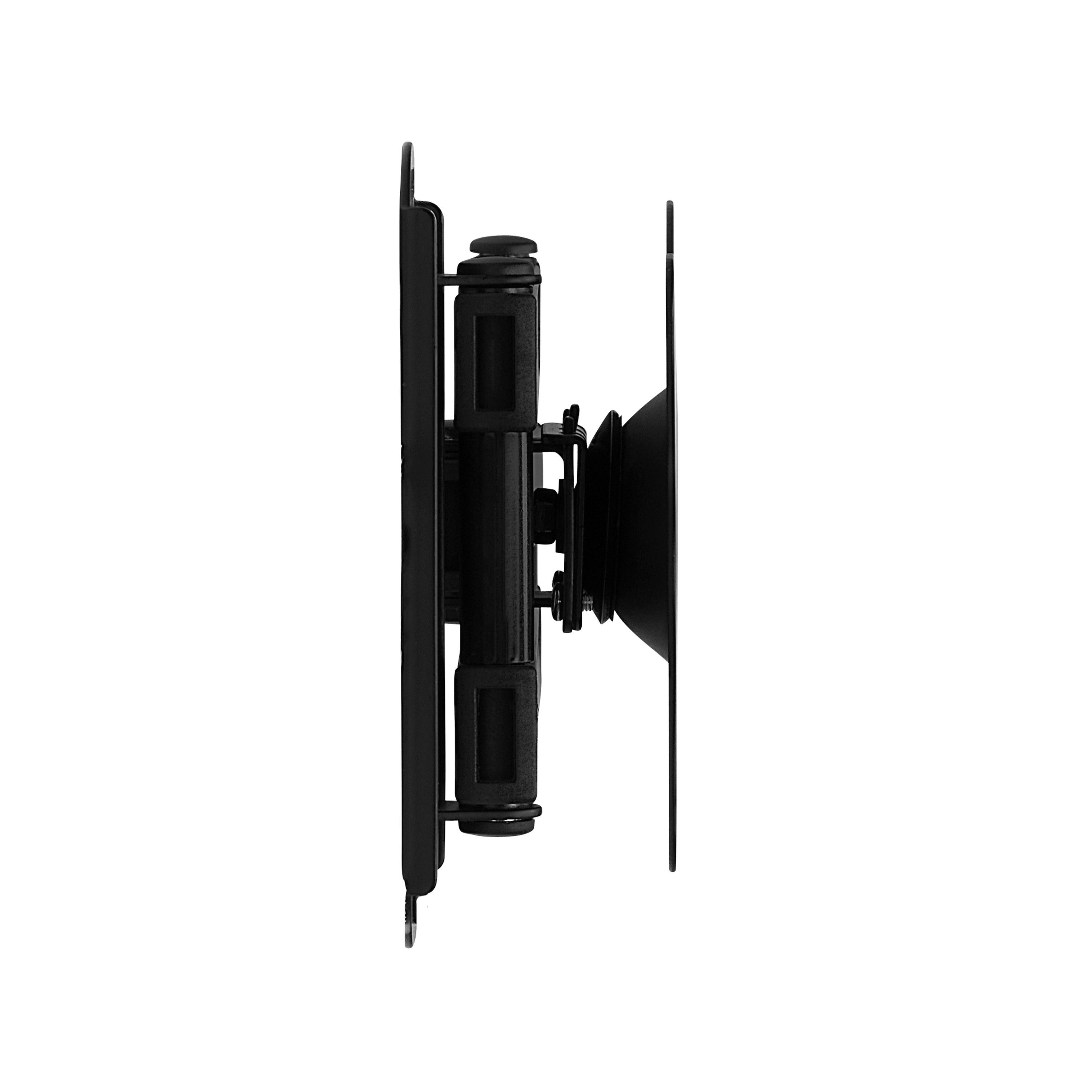

  • Folds in when not in use

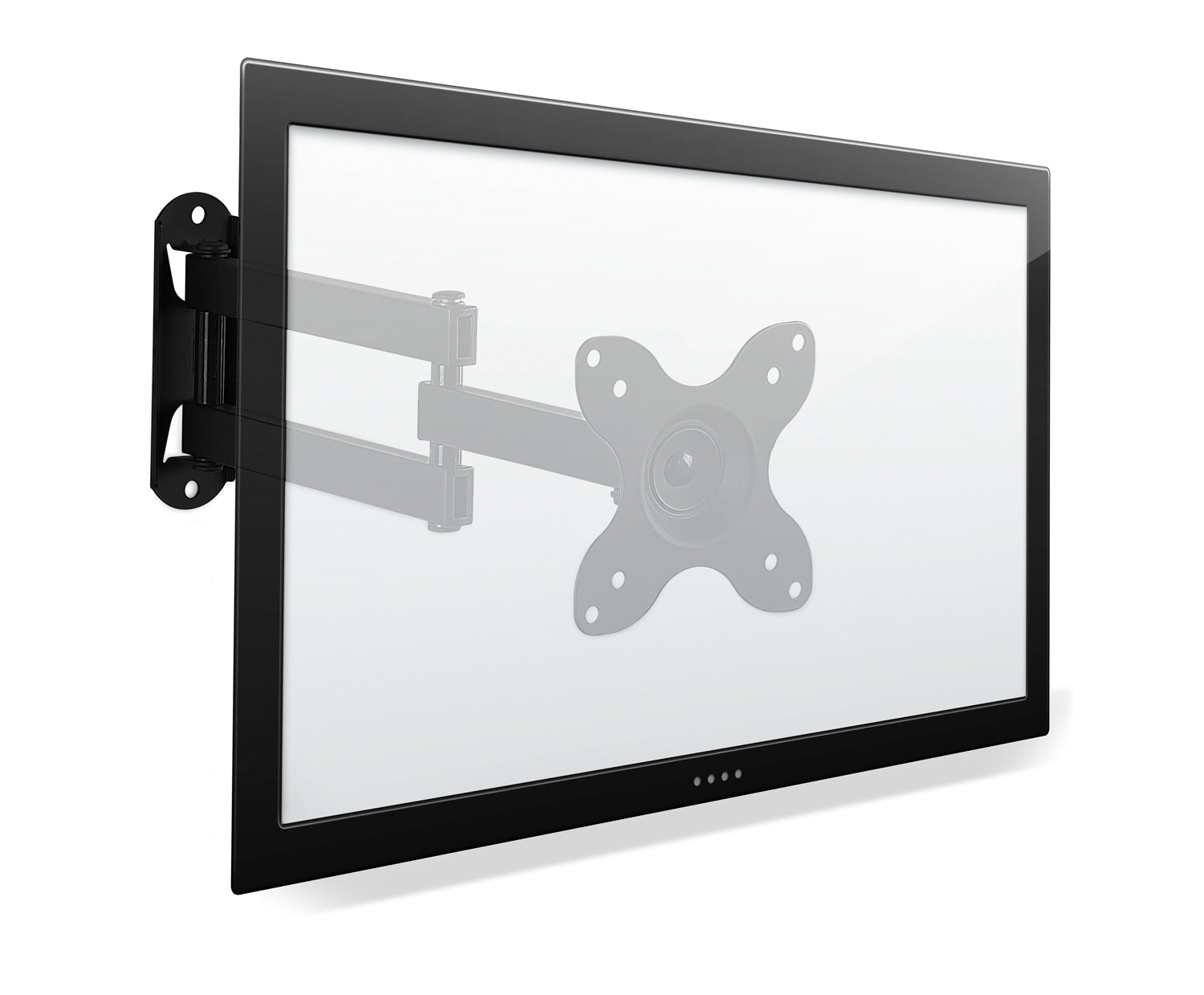

Supporting more comfortable and productive EHR workflows, our full-motion monitor mount complements any compatible CarePod™ Wall-Mounted Workstation. Alternatively, the mount can be fastened separately to a wall. Accommodating a range of monitor sizes and both curved and flat backs, the mount’s articulating arm offers a full range of motion. Caregivers can adjust the screen position to their preferred placement, with the mount easily folding back in for storage when not in use.

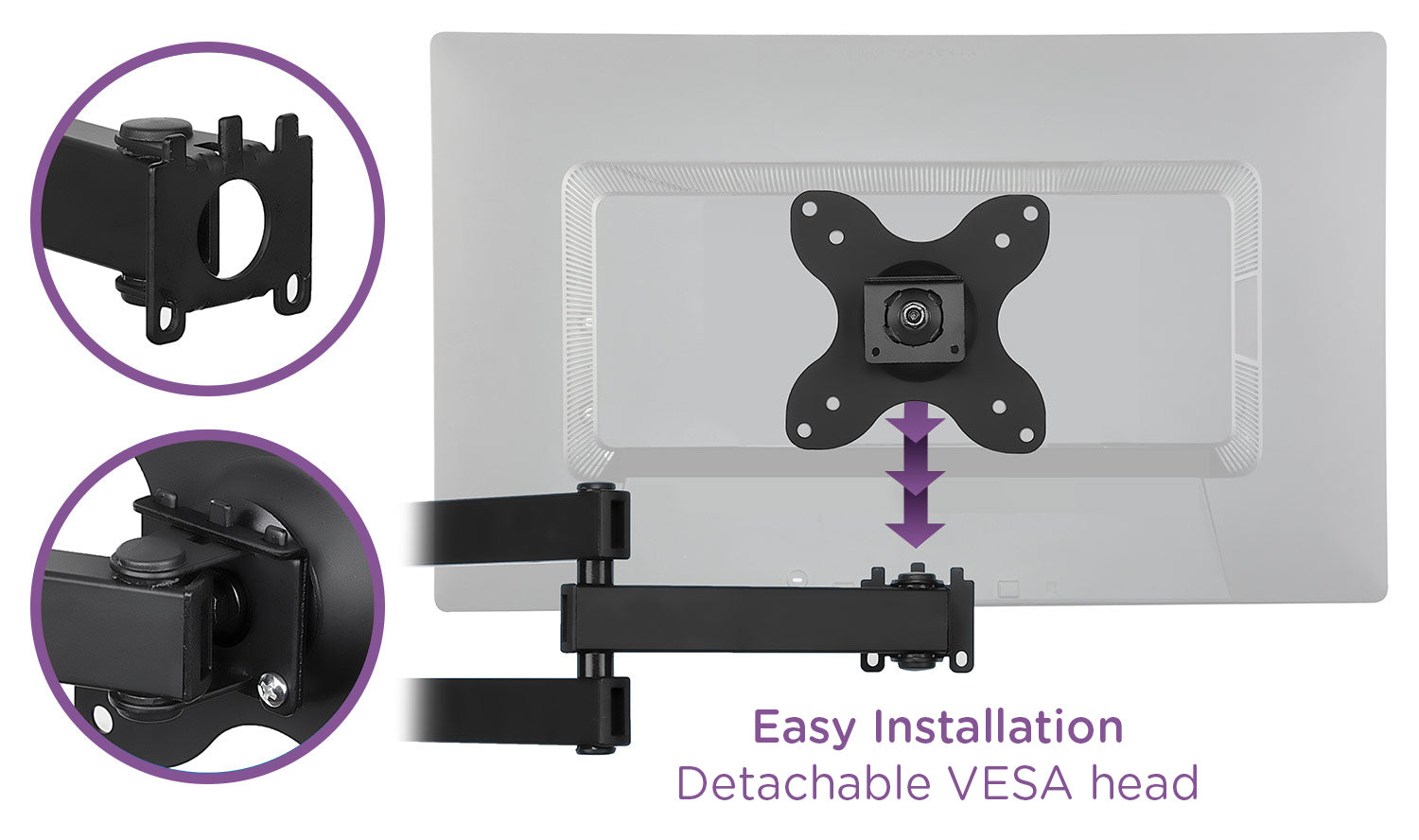

The monitor mount also includes holes designed for efficient cable and wire management. Installation is simple with the provided hardware and easy-to-follow instructions.

Product Sheet Download PDF
Dimensional Illustrations Download PDF
Installation Instructions Download PDF
Compatibility CarePod Wide 6" Wall-Mounted Workstations or wall mount separately

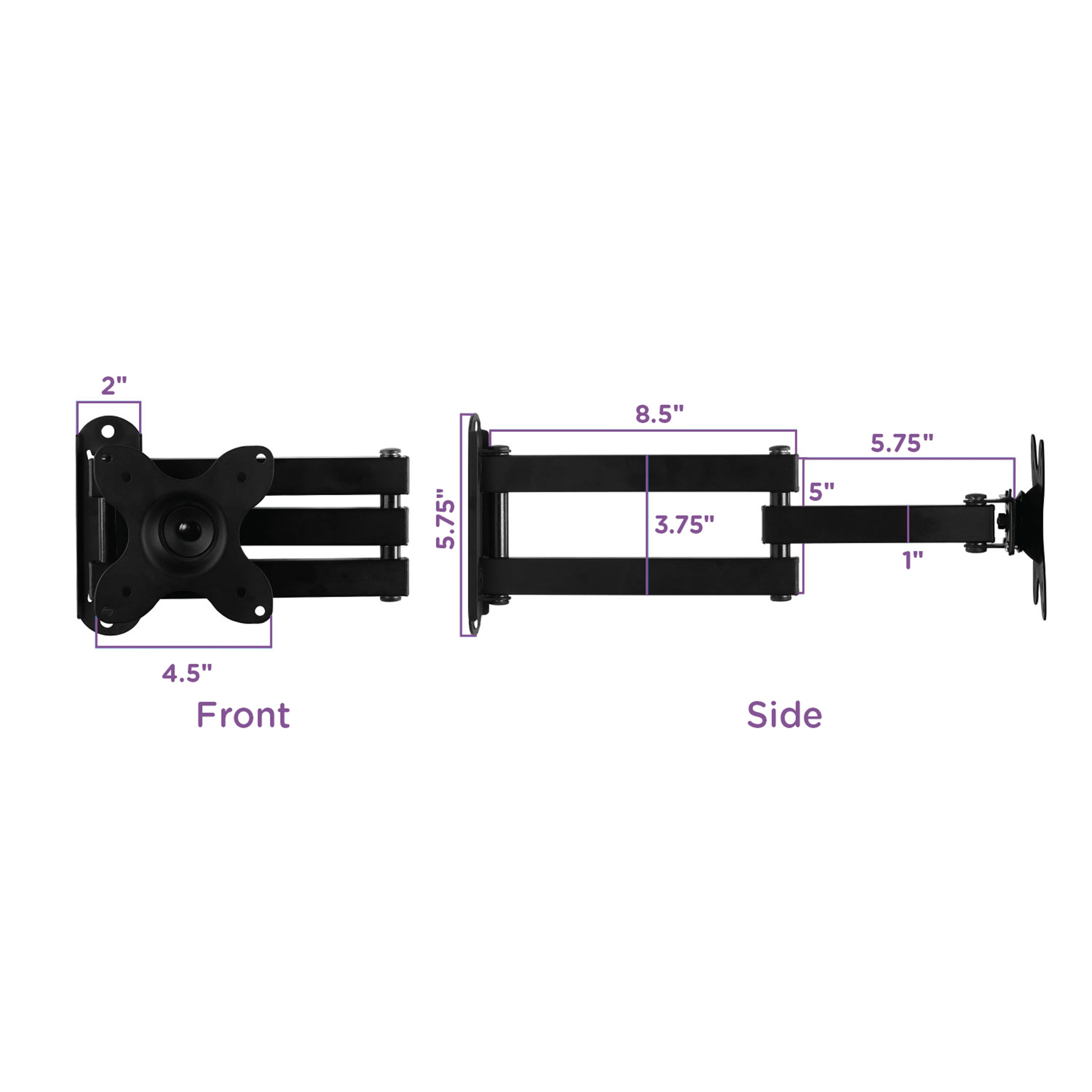

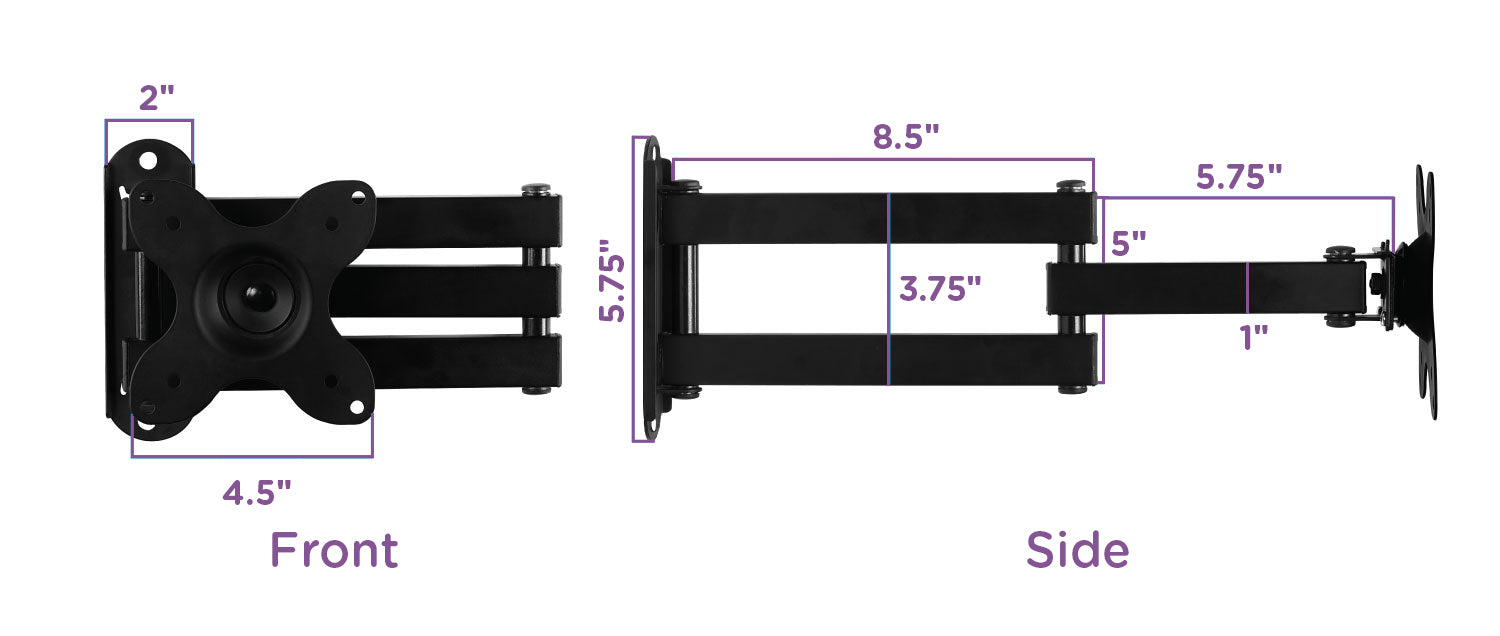

Product Dimensions L8.5" x D1.75" x H5.75"

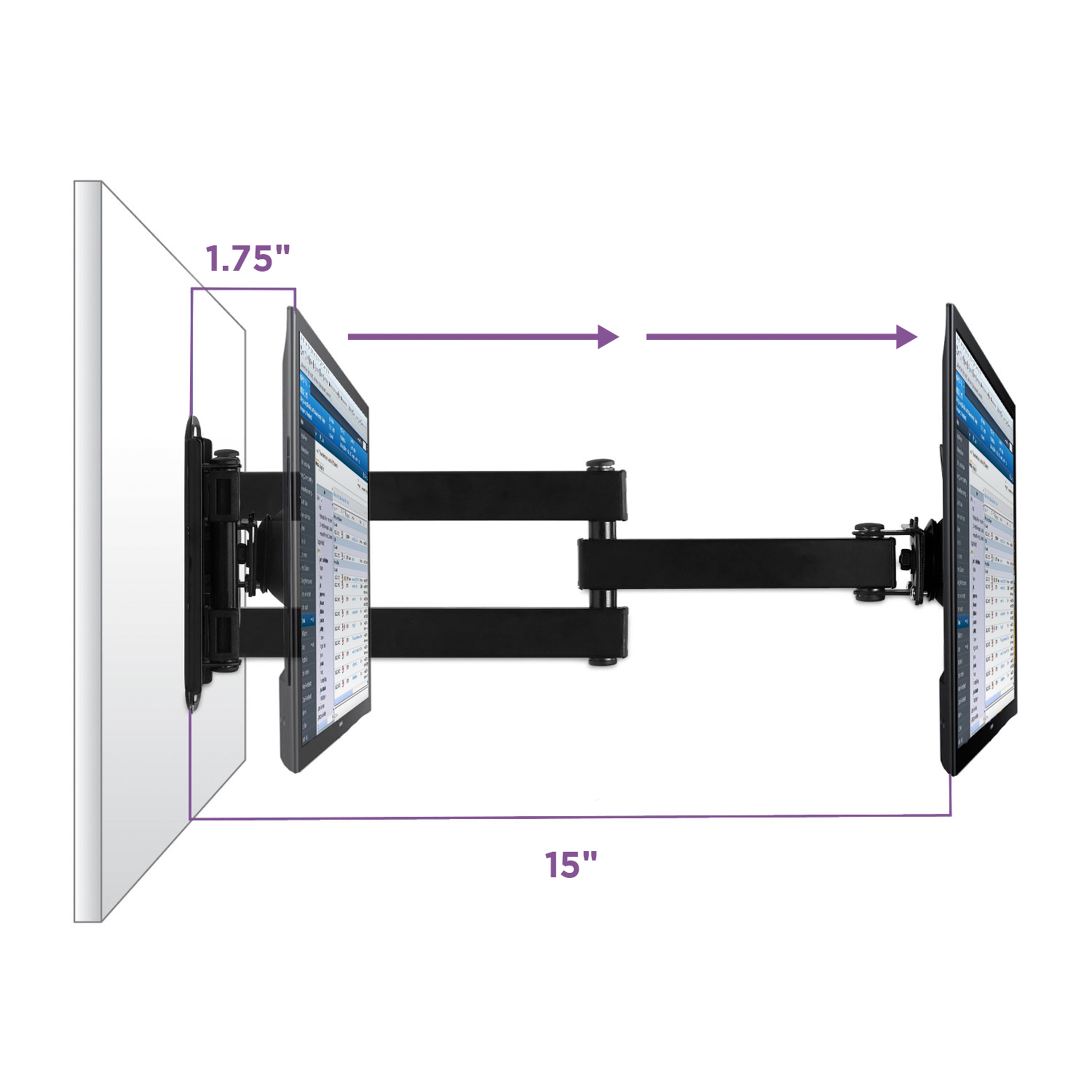

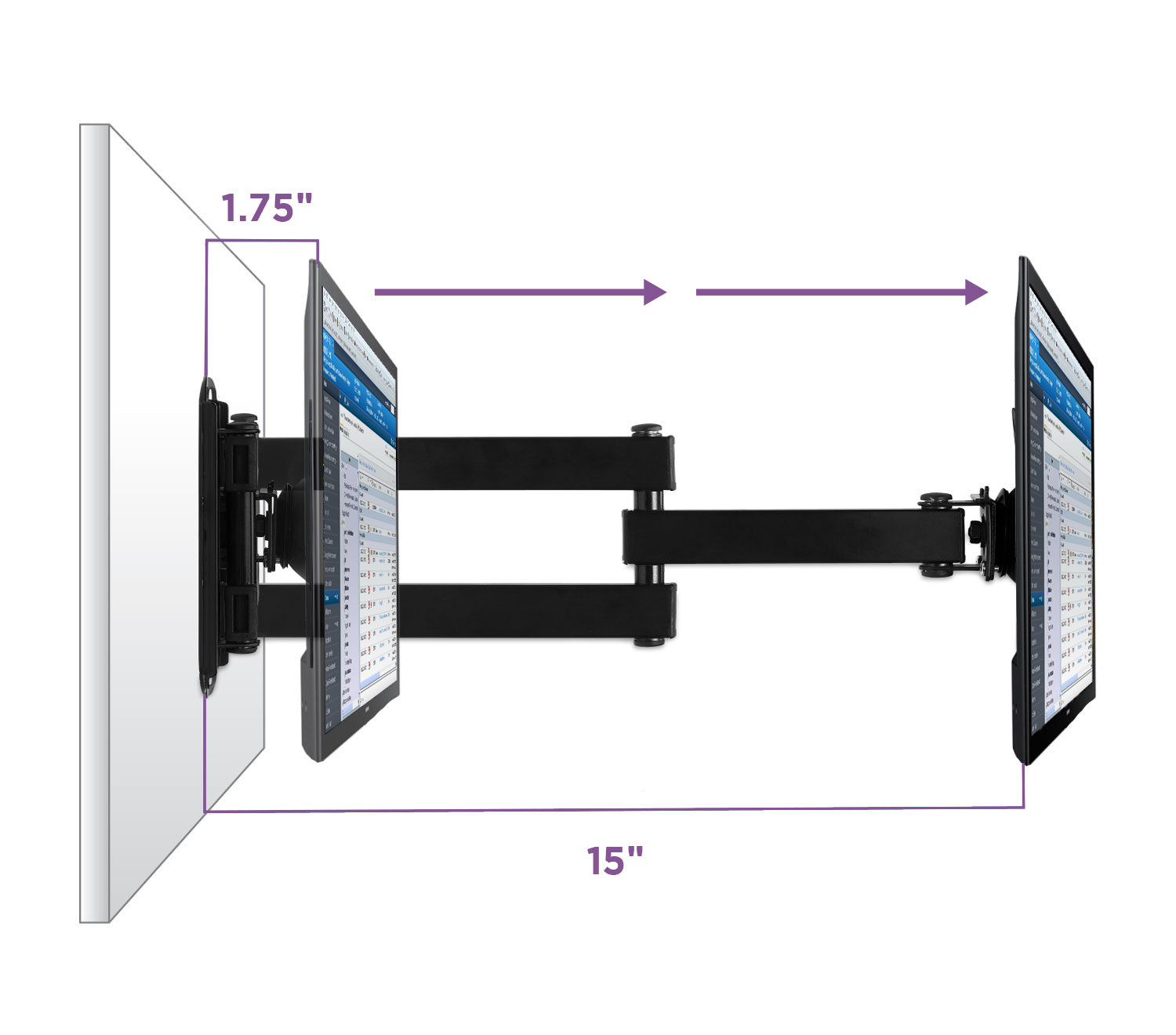

Extension From Wall 1.75" – 15"
Weight 1.85 lbs
Weight Capacity 33 lbs

Monitor Size
Wall-mounted | 13" – 34"
CarePod Wide 6" | 27" max
CarePod Wide with Mini Shelves | 22" max
CarePod Wide 6" | 20" max with 360° rotation
Monitor Depth 2.5 inches max*

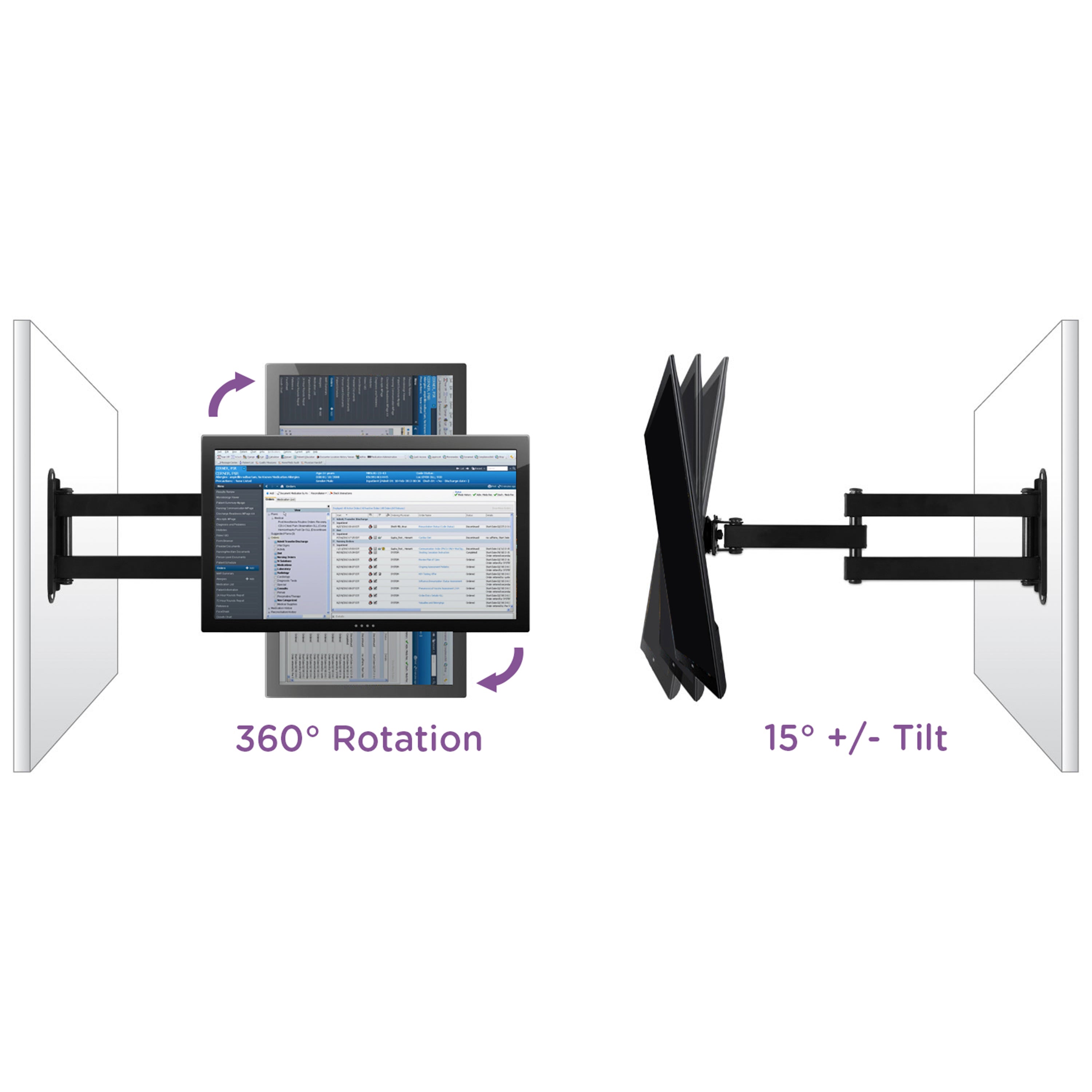

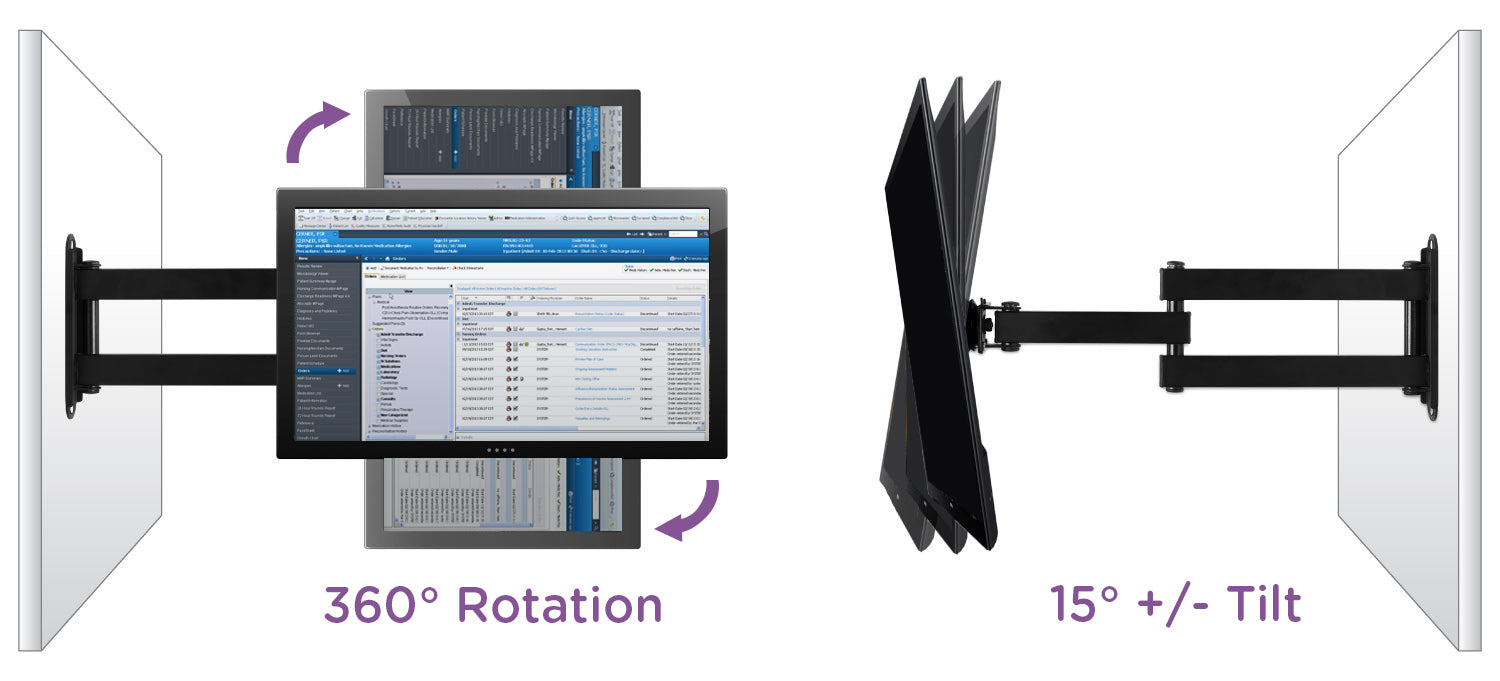

Tilt +/- 15 degrees
Rotation 360˚ rotation

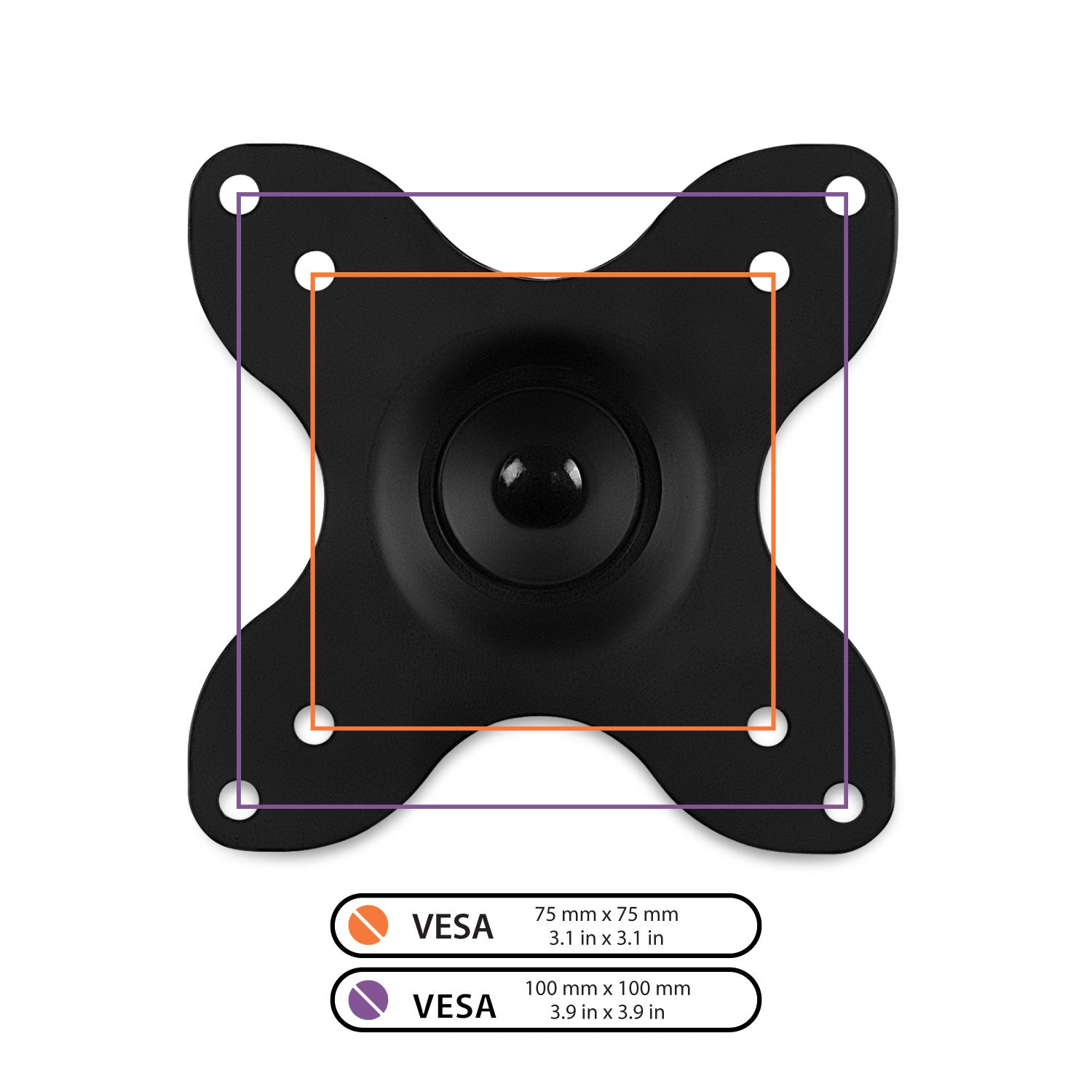

VESA 75 x 75mm – 100 x 100mm
Finish Matte black
Material Powder-coated steel
Package Includes One (1) wall plate with articulating arm, one (1) VESA mount head, one (1) wrench, two (2) M4x6 bolts,
four (4) M4 spacers, four (4) M4x12 bolts, four (4) M4x30 bolts, two (2) bolt covers, two (2) lag bolt washers,
two (2) lag bolts, two (2) concrete anchors, and three (3) cable ties.
Warranty 1-year limited
*When used in a CarePod Wide with a keyboard door, the keyboard and any mounting velcro cannot exceed 1.35” high in a 6" deep workstation.
