Programmable Cooling Fan
Choose options
Help protect IT equipment from overheating in CarePod Wall-Mounted Workstations with our programmable cooling fan and thermostat kit. Equipped with a thermal sensor, this electric fan kit is slim and ultra-quiet. Automatically activating to lower the cabinet’s interior temperature based on your custom settings, our electric fan mounting kit helps guard against damage.
- Ultra-quiet operation
- Fully programmable temperature control
- Repositionable thermocouple probe
- For use with CarePod Narrow 6” and CarePod Wide 6” only
- Easy to install with included hardware

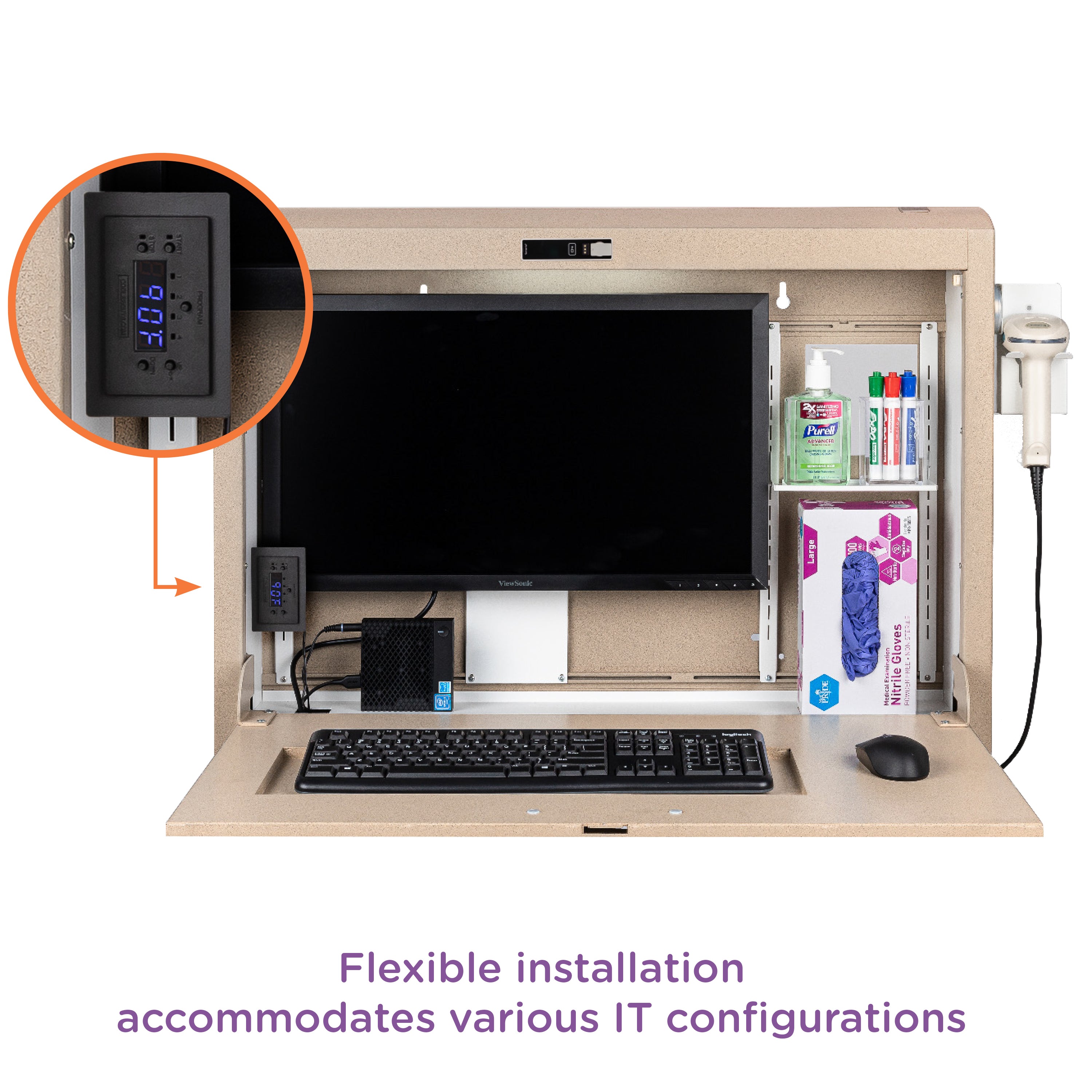

Protect mini PCs, desktop towers, or other IT equipment installed in CarePod Wall-Mounted Workstations from overheating with our programmable, medium-speed electric fan kit. The thermal sensor in this fan mount kit activates the fan to lower the cabinet’s interior temperature based on your custom settings, helping to guard against damage.
The electric fan mounting kit’s slim design minimizes space without sacrificing efficiency. The ultra-quiet operation of our programmable cooling fan kit is particularly welcome when installed in or near patient environments.

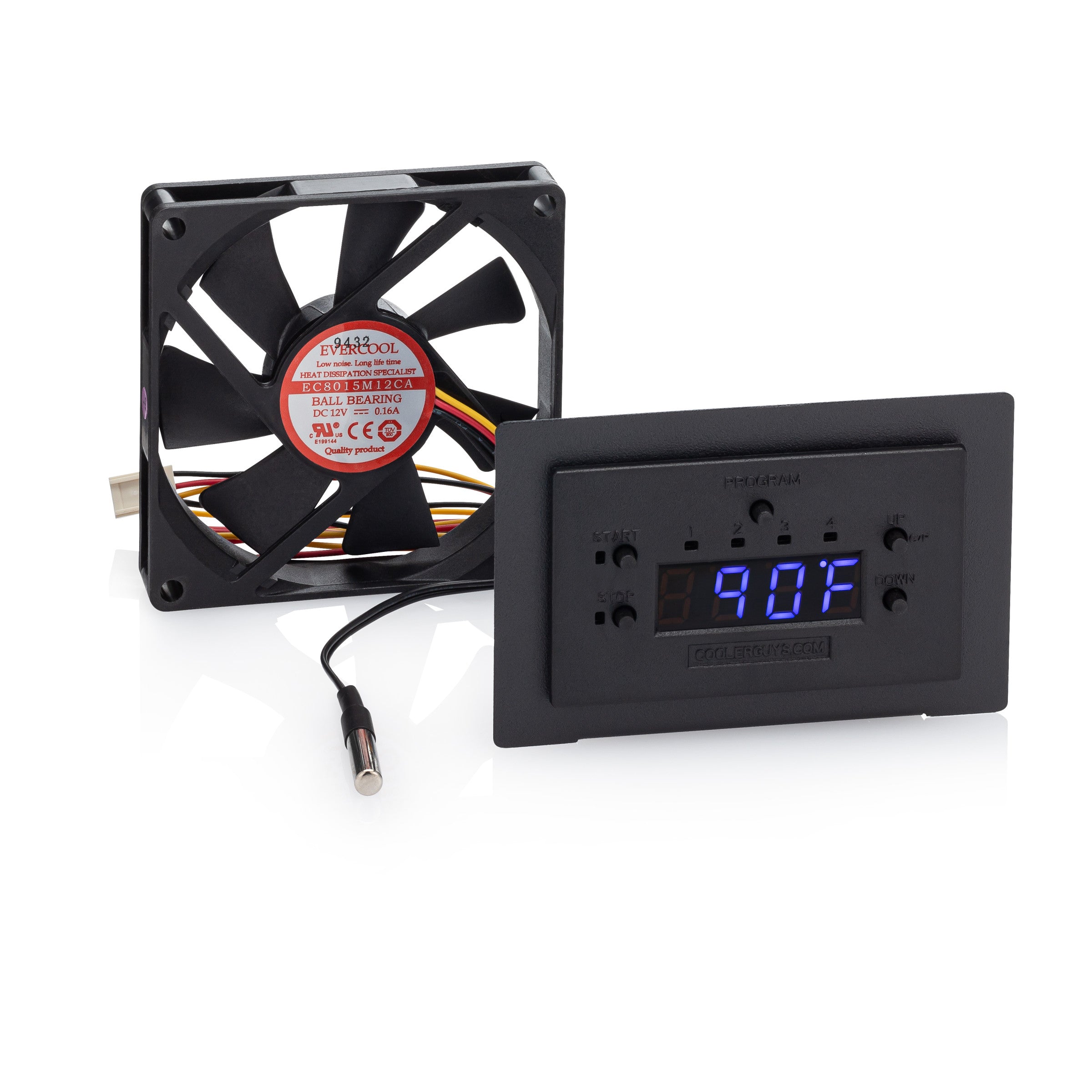

| Package Includes | One (1) fan, one (1) programmable thermostat, one (1) temperature probe, one (1) power adapter, and one (1) mounting bracket, plus installation hardware. |
|---|---|
| Fan Speed | 2500 RPM |
| Noise Level | 22 DBA |
| Fan Max Airflow | 28.49 CFM |
| Fan Temperature | Auto on/off, Fahrenheit or Celsius 32°-211°F (0-100°C) |
| Fan Auto On | + 2°F/1°C programmed temp |
| Fan Connector | 3 pin |
| Fan Rated Voltage | 12V |
| Fan Rated Current | 0.16A |

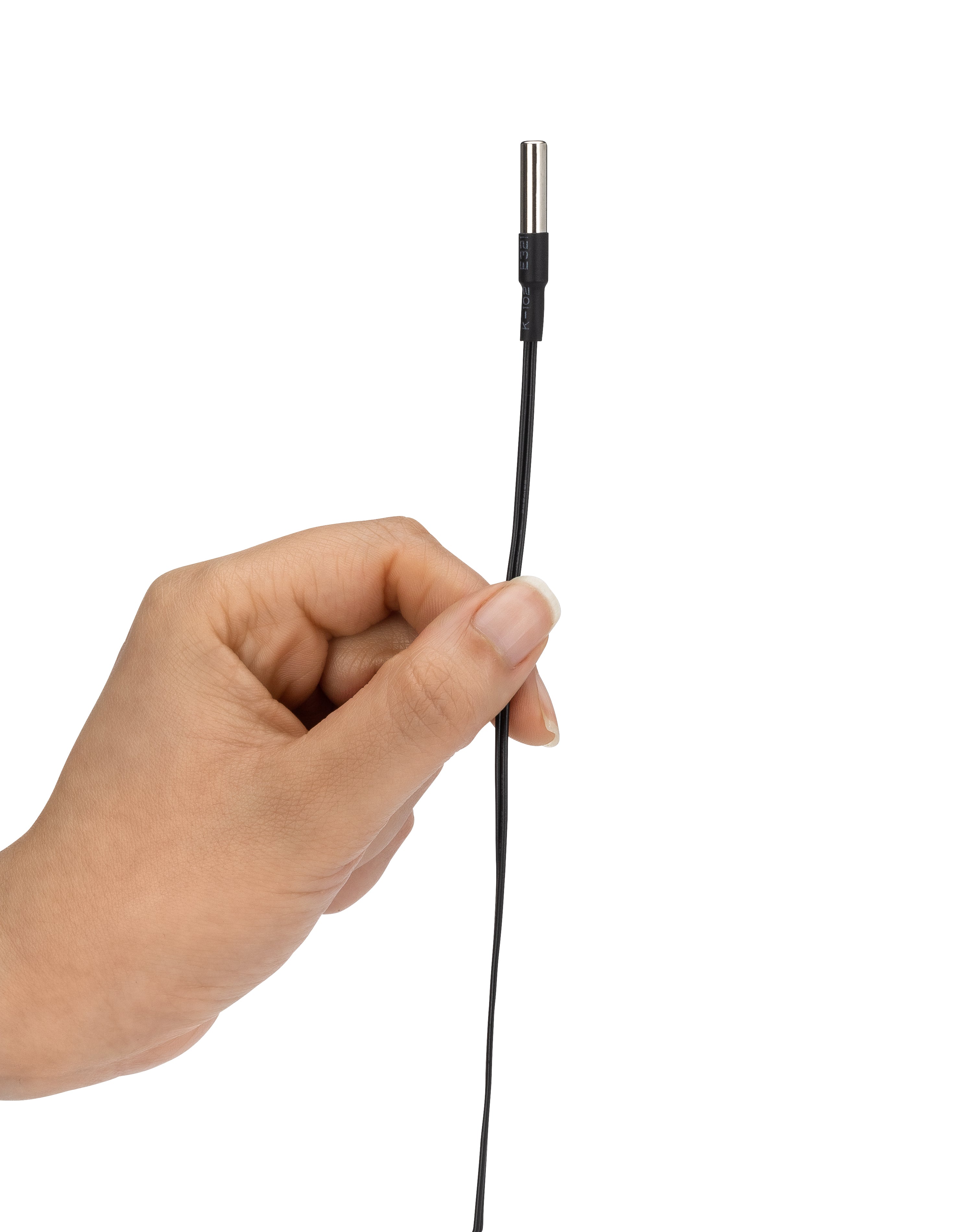

| Thermocouple Probe | 32" waterproof, high heat |

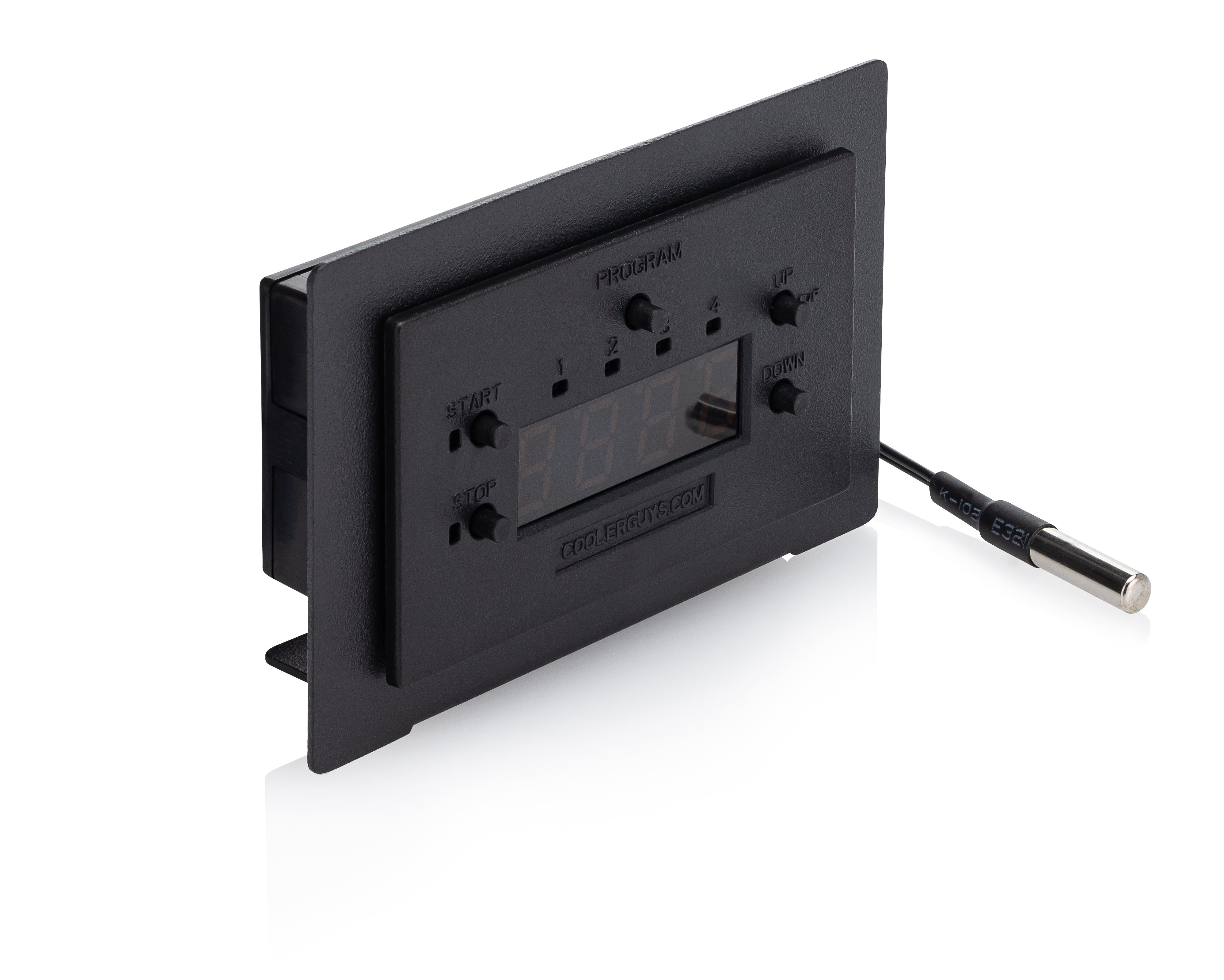

| Thermostat | 4 segment LED display, 4 3-pin fan ports, 10mA draw |
| Charger Input | 100-240V AC |
| Charger Output | 12V 1A |
| Material | Thermoplastic |
| Fan Bearing Type | Ball bearing |
| Fan Dimensions | L3.15" ×W3.15" ×H.59" |
| Thermostat Dimensions | L2.953" ×W1.723" ×H1.024" |
| Bracket Dimensions | W3.62” ×H2.36” ×D.98” |
| Shipping Weight | .35 lbs |
| Mounting Location | Left interior side panel of CarePod Narrow 6” and CarePod Wide 6” only. |
| Warranty |
Fan | 30 days Thermostat | 3-year limited |
| Certifications | Fan & Power Supply: UL Listed Thermostat: CE, RoHS |
| Product Sheet | Download PDF |
|---|---|
| Dimensional Illustrations | Download PDF |
| Installation Instructions | Download PDF |
